CPI win Sprinkler & Hydrants

Software fire fighting system

CPI win SPIDI (SPRINKLER & HYDRANTS) is the tailor-made Italian Software created for fire fighting water systems professional design, in particular for Sprinkler, Hydrants and Monitors system.
Try now

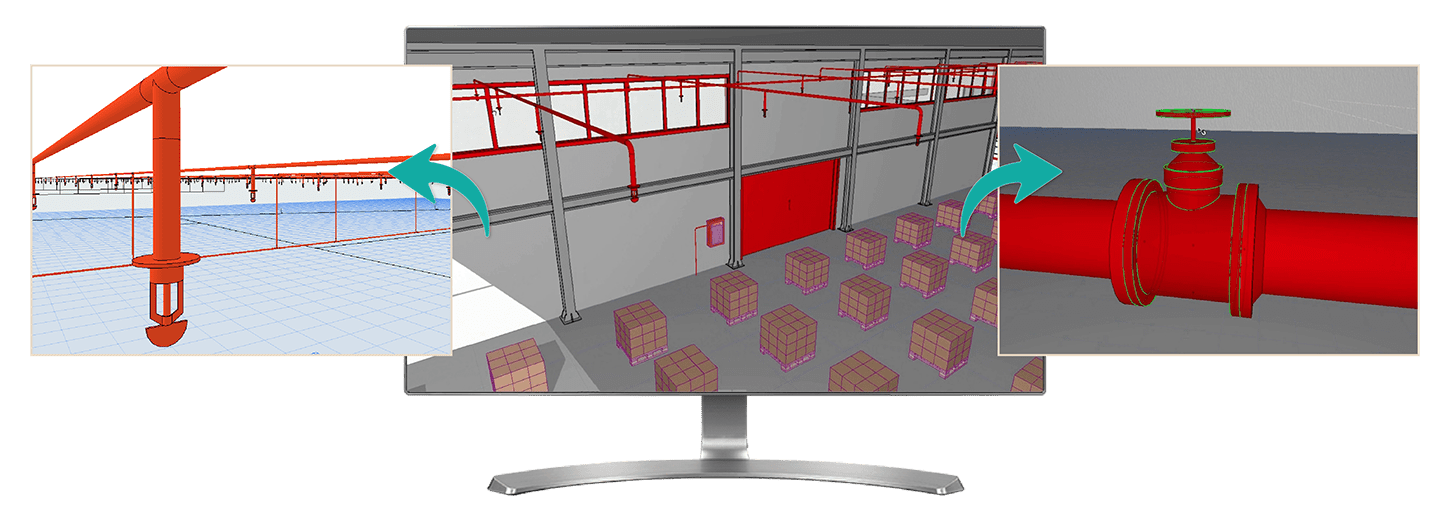

Sprinkler system design software – Hydrant system design software

When looking for a simple software, but complete, with all the features that a software design must have, CPI win SPIDI is the right one for you, thanks to its easy and flexible user interface that ensures a short learning curve and rapid estimate turnaround. It permits: system design according to EN 12845 and/or NFPA 13 codes, dimension the pipings and make the calculation, choice the pump group, create a complete report, create the material list and then create technical drawings and sections in dwg/dxf, with all the necessary information.

CPI win® SPIDI allows the user to follow (even in the same project) the European standard EN 12845 and the NFPA 13 standards (considering also all study cases for the installation of ESFR and CMSA sprinkler, in addition to all types of sprinklers contemplated in the respective standards). But it has a great flexibility that permits you to design also with any hydraulic parameter and free classification.

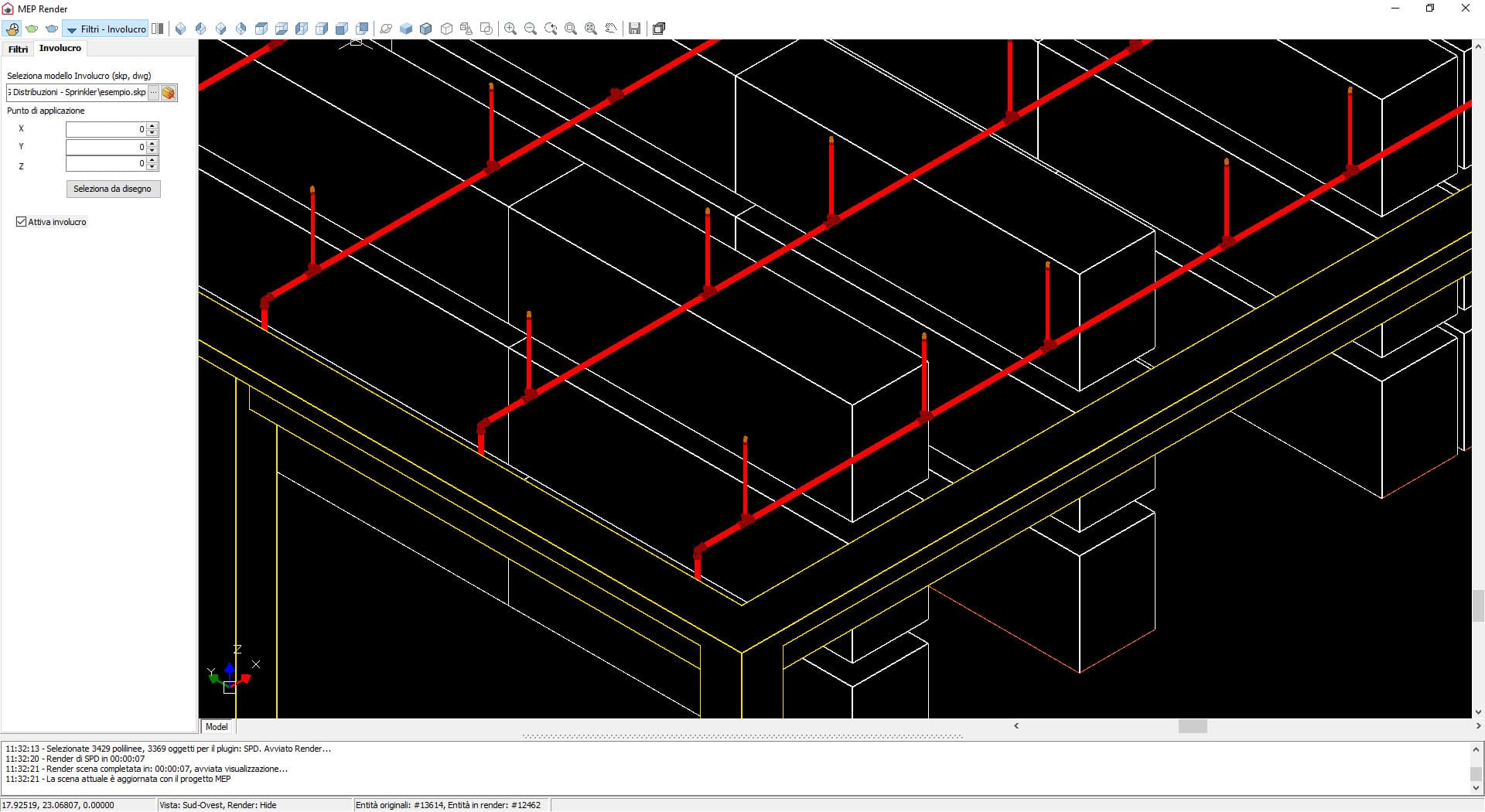

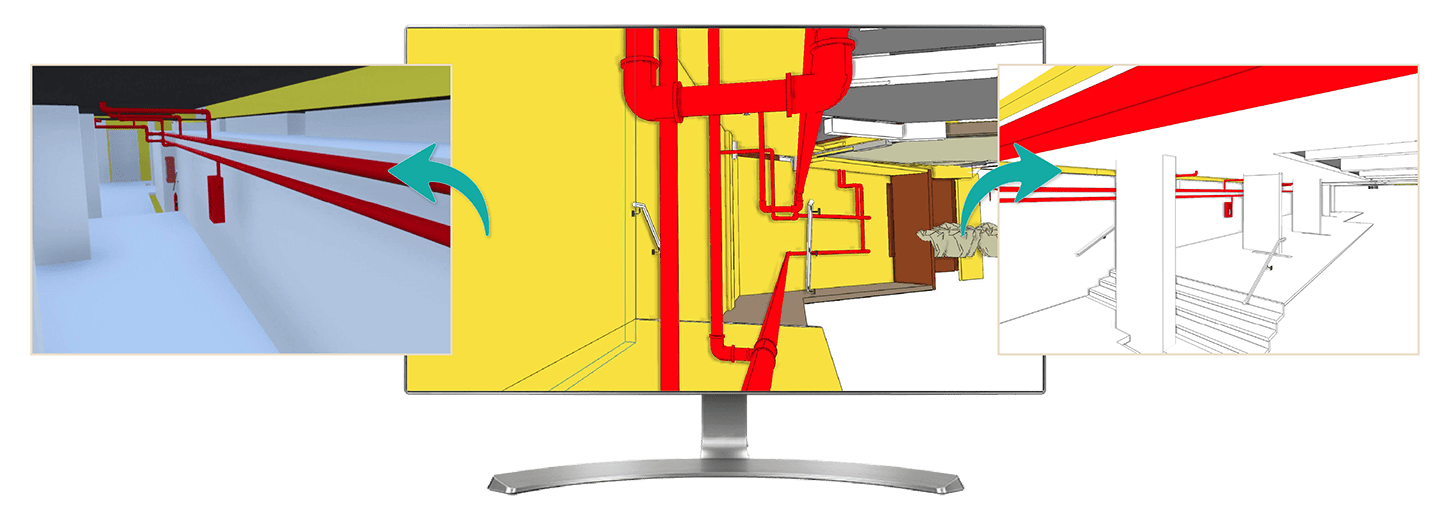

It can import directly a sprinkler piping system from a dwg/.dxf file or design it with the software stand-alone Render 3D CAD, with tools to quickly draw your system within a few clicks.

Funzionalità sprinkler e idranti

  • DESIGN AND MANAGEMENT of 3D piping, also on multiple levels and with the main CAD functions
  • Simultaneous management of various independent piping system within the same project with separate calculation;
  • All types of objects commonly used in a water system, perfectly scalable: hydrants, sprinklers, valves, installation supplies, joints, hangers, etc.
  • POWERFUL TOOLS (Wizards) for quick input of entire extended system parts: with CPI win SPIDI you can create great network parts, inserting thousand of sprinklers in a few seconds by two or maximum three mouse clicks (branches, trees, grids, vertical grids and layouts for automatic filling of whole areas), inserting automatically candles, risers and vertical grids for rack systems. The Hydrant Wizard, also, permits to create assembled column of hydrants, until the desired height
  • FREE CLASSIFICATION TOOL to input data for every other code (for example if you need to apply FM code).
  • PERSONAL FILTERS associating labels to pipes and objects, allowing to quickly change the common properties
  • Ability to force the lenghts detected in the design;
  • RENUMBERING of pipes and objects in logical sequence;
  • AUTOMATIC INSERTION of Joints and Hangers;
  • AUTOMATIC CALCULATION of all special pieces (elbows, valves, Tees, etc.) with ability to force the type and number as desired;
  • ABILITY TO SET terminals flow and pressure, to monitor their coverage areas, in order to optimize their position and numbers;
  • CONSTANT DESIGN CHECK that detects errors in the design composition;
  • DWG/SKETCHUP IMPORT in render section, real time design development and evidence of any other systems or structures interference.
  • SYSTEM SIZING AND VERIFICATION CONTROL of calculation results obtained for each entities, optimizing projects performance and cost efficiencies.
  • CUSTOMIZABLE TECHNICAL REPORTS in according to standard code choice.
  • DETAILED PARTS LIST according to processing and mounting system chosen and available pieces.
  • CREATION AND EXPORT of a detailed system plan and of technical sections too.
  • EXPORT RENDERED SYSTEM in DWG format thanks to MEP technology.
